RayCaster Class Reference

A ray caster renders an image by casting rays through the data. More...

#include <RayCaster.h>

Inheritance diagram for RayCaster:

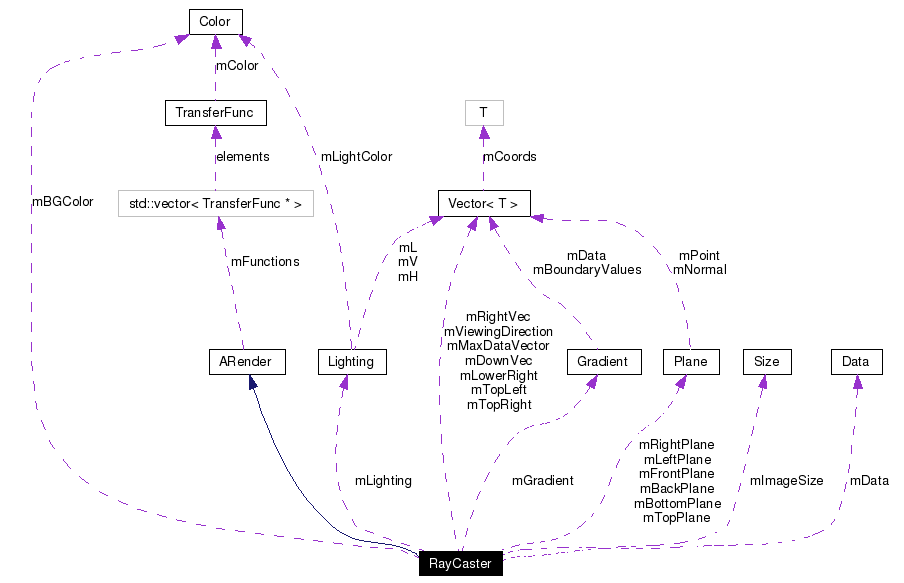

[legend]Collaboration diagram for RayCaster:


Public Member Functions
	RayCaster (Data &aData, Gradient &aGradient, Size s=Size(1, 1), Color bgColor=Color(0, 0, 0, 255), RenderMode renderMode=RM_FrontToBack, InterpolationMode interpolationMode=IM_NearestNeighbour)
	~RayCaster ()
void	setViewerPosition (const Vector<> &A, const Vector<> &B, const Vector<> &C)
void	setImageSize (const Size &s)
virtual Color	getPixelColor (unsigned int x, unsigned int y)
	Gets the color of a specified screen pixel.
virtual Size	getImageSize () const
	Gets the intrinsic size of the image per the current settings.
virtual void	render (unsigned char *buffer)
	Render the image into a provided buffer, in RGBA (native-endian) format.
void	setRenderMode (RenderMode newRenderMode)
RenderMode	getRenderMode () const
void	setInterpolationMode (InterpolationMode newInterpolationMode)
InterpolationMode	getInterpolationMode () const
void	setBGColor (Color newBGColor)
Color	getBGColor () const
void	setSampleRate (float newRate)
float	getSampleRate () const
void	enableLighting ()
void	disableLighting ()
bool	isLightingEnabled () const
Lighting *	lighting ()
Protected Member Functions
Color	applyTransferFunctions (unsigned short aDataValue, const Vector<> &gradient) const
Private Member Functions
void	calcVectors ()
std::auto_ptr< Vector<> >	intersectRayWithNearestPlane (const Vector<> &startPos, const Vector<> &direction) const
	Calculates the position where our viewing ray leaves the box of mData (if any).
std::auto_ptr< Vector<> >	intersectRayWithFarthestPlane (const Vector<> &startPos, const Vector<> &direction) const
unsigned short	getDataAt (float x, float y, float z) const
	Gets the data at the specified float position.
unsigned short	getDataTrilinearInterpolated (float x, float y, float z)
Vector	getGradientAt (float x, float y, float z) const
Vector	getGradientTrilinearInterpolated (float x, float y, float z)
Color	getPixelColor_FrontToBack (unsigned int x, unsigned int y)
Color	getPixelColor_BackToFront (unsigned int x, unsigned int y)
void	render_FrontToBack (unsigned char *buffer)
void	render_BackToFront (unsigned char *buffer)
void	compositeBackToFront (Color &dest, const Color &src)
	Composites one color onto another.
void	compositeFrontToBack (Color &dest, const Color &src)
Private Attributes
Data &	mData
Gradient &	mGradient
Size	mImageSize
Vector	mTopLeft
Vector	mTopRight
Vector	mLowerRight
Vector	mViewingDirection
Vector	mRightVec
Vector	mDownVec
Lighting	mLighting
Color	mBGColor
RenderMode	mRenderMode
InterpolationMode	mInterpolationMode
float	mSampleRate
bool	mEnableLighting
const Vector	mMaxDataVector
const Plane	mFrontPlane
const Plane	mBackPlane
const Plane	mTopPlane
const Plane	mBottomPlane
const Plane	mLeftPlane
const Plane	mRightPlane

Detailed Description

A ray caster renders an image by casting rays through the data.

It is constructed using a reference to a data class, which has to outlive the renderer.

The viewing rectangle is specified using three points (A, B, C, as indicated in the ASCII art below). The viewing vector is calculated automatically as the cross product of two vectors of the sides of the rect.

   A------------------------------B
   | .                       *    |
   |      .             *         |
   |            .  *              |
   |           * M   .            |
   |      *               .       |
   | *                         .  |
   D------------------------------C

Constructor & Destructor Documentation

RayCaster::RayCaster ( Data & aData,

Gradient & aGradient,

Size s = Size(1, 1),

Color bgColor = Color(0, 0, 0, 255),

RenderMode renderMode = RM_FrontToBack,

InterpolationMode interpolationMode = IM_NearestNeighbour

)

RayCaster::~RayCaster ( )

Member Function Documentation

Color RayCaster::applyTransferFunctions ( unsigned short aDataValue,

const Vector<> & gradient

) const [protected]

void RayCaster::calcVectors ( ) [private]

void RayCaster::compositeBackToFront ( Color & dest,

const Color & src

) [inline, private]

Composites one color onto another.

void RayCaster::compositeFrontToBack ( Color & dest,

const Color & src

) [inline, private]

void RayCaster::disableLighting ( )

void RayCaster::enableLighting ( )

Color RayCaster::getBGColor ( ) const

unsigned short RayCaster::getDataAt ( float x,

float y,

float z

) const [inline, private]

Gets the data at the specified float position.

unsigned short RayCaster::getDataTrilinearInterpolated ( float x,

float y,

float z

) [inline, private]

Vector RayCaster::getGradientAt ( float x,

float y,

float z

) const [inline, private]

Vector RayCaster::getGradientTrilinearInterpolated ( float x,

float y,

float z

) [inline, private]

Size RayCaster::getImageSize ( ) const [virtual]

Gets the intrinsic size of the image per the current settings.

Implements ARender.

InterpolationMode RayCaster::getInterpolationMode ( ) const

Color RayCaster::getPixelColor ( unsigned int x,

unsigned int y

) [virtual]

Gets the color of a specified screen pixel.

Implements ARender.

Color RayCaster::getPixelColor_BackToFront ( unsigned int x,

unsigned int y

) [private]

Color RayCaster::getPixelColor_FrontToBack ( unsigned int x,

unsigned int y

) [private]

RenderMode RayCaster::getRenderMode ( ) const

float RayCaster::getSampleRate ( ) const

std::auto_ptr< Vector<> > RayCaster::intersectRayWithFarthestPlane ( const Vector<> & startPos,

const Vector<> & direction

) const [private]

std::auto_ptr< Vector<> > RayCaster::intersectRayWithNearestPlane ( const Vector<> & startPos,

const Vector<> & direction

) const [private]

Calculates the position where our viewing ray leaves the box of mData (if any).

bool RayCaster::isLightingEnabled ( ) const

Lighting * RayCaster::lighting ( )

void RayCaster::render ( unsigned char * buffer ) [virtual]

Render the image into a provided buffer, in RGBA (native-endian) format.
Buffer must be of size getImageSize.width() * getImageSize.height() * 4.
Implements ARender.
